Surface Mount Programmable IC Chip Atmega162-16au Flash Program Memory

ATMEGA162-16AU 8-bit Microcontroller with 16K Bytes In-System Programmable Flash IC

Features

• High-performance, Low-power AVR® 8-bit Microcontroller

• Advanced RISC Architecture – 131 Powerful Instructions – Most Single-clock Cycle Execution – 32 x 8 General Purpose Working Registers – Fully Static Operation – Up to 16 MIPS Throughput at 16 MHz – On-chip 2-cycle Multiplier

• Non-volatile Program and Data Memories – 16K Bytes of In-System Self-programmable Flash Endurance: 10,000 Write/Erase Cycles – Optional Boot Code Section with Independent Lock Bits In-System Programming by On-chip Boot Program True Read-While-Write Operation – 512 Bytes EEPROM Endurance: 100,000 Write/Erase Cycles – 1K Bytes Internal SRAM – Up to 64K Bytes Optional External Memory Space – Programming Lock for Software Security

• JTAG (IEEE std. 1149.1 Compliant) Interface – Boundary-scan Capabilities According to the JTAG Standard – Extensive On-chip Debug Support – Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface • Peripheral Features – Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes – Two 16-bit Timer/Counters with Separate Prescalers, Compare Modes, and Capture Modes – Real Time Counter with Separate Oscillator – Six PWM Channels – Dual Programmable Serial USARTs – Master/Slave SPI Serial Interface – Programmable Watchdog Timer with Separate On-chip Oscillator – On-chip Analog Comparator • Special Microcontroller Features – Power-on Reset and Programmable Brown-out Detection – Internal Calibrated RC Oscillator – External and Internal Interrupt Sources – Five Sleep Modes: Idle, Power-save, Power-down, Standby, and Extended Standby

programmable logic chip

programmable integrated circuit

Surface Mount Programmable IC Chip

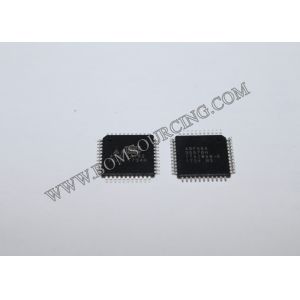

Surface Mount Programmable IC Chip Atmega162-16au Flash Program Memory Images
